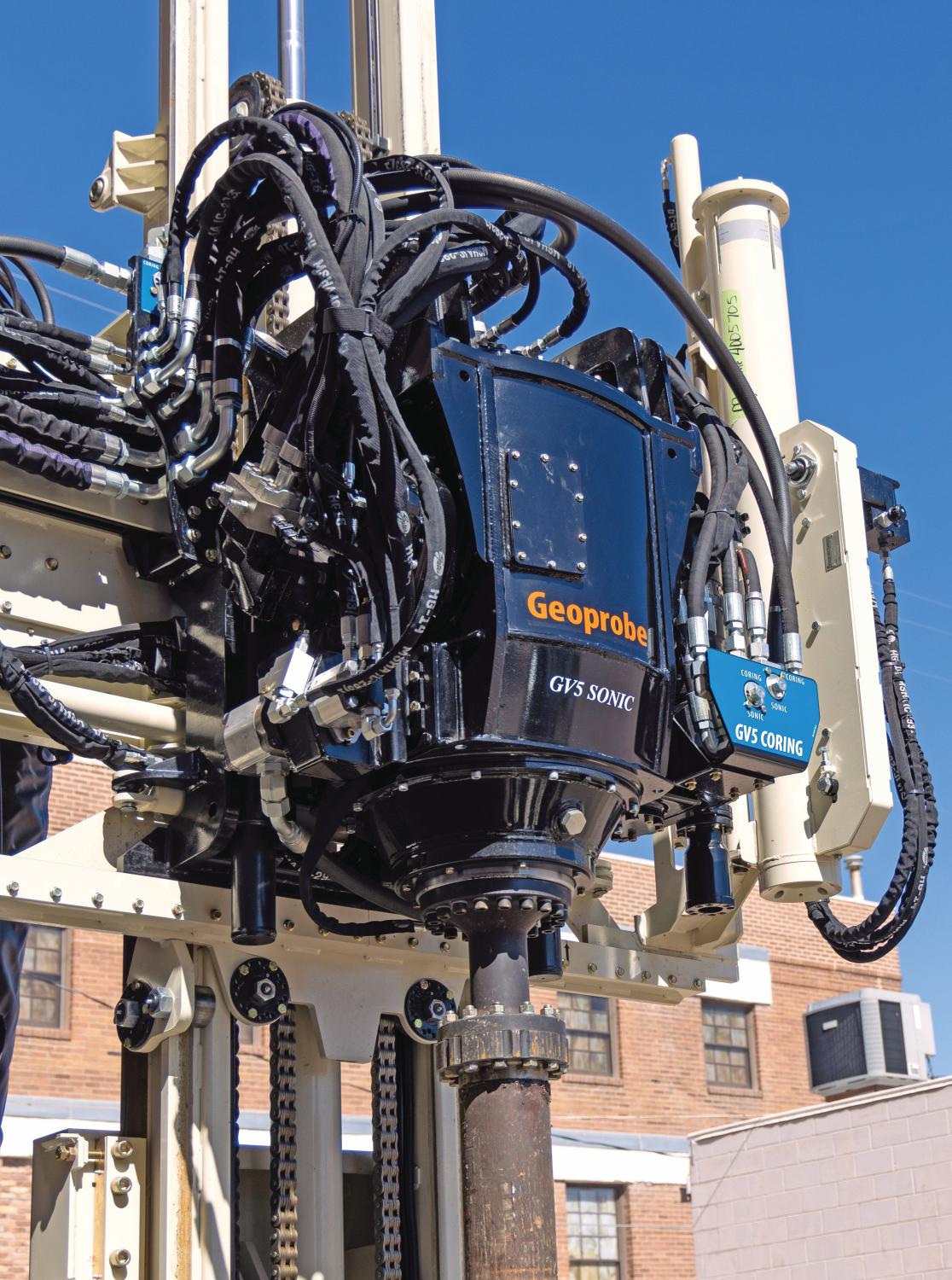

GV5 Sonic Head Provides Power and Durability

Sonic operators worldwide have historically struggled securing a sonic head providing both performance and durability. In response, Geoprobe^® engineers have focused countless hours of research, development, and testing to ensure the Geoprobe^® GV5 sonic head provides not only production power but also longevity. By engineering and manufacturing GV5 heads in-house, Geoprobe^® maintains not only quality but ability to continually improve the GV5. Sonic drilling operations from Turkey to New Zealand rely on the GV5 sonic head to stand the test of time, eliminating the need to tie up capital to keep an extra sonic head on the shelf.

3-Year/1,000-Hour Sonic Head Warranty

Continual innovation of GV5 sonic head ensures both ample power and robust head life. Regardless of formation or operator experience, Geoprobe^® GV5 sonic heads receiving basic maintenance keep running.

High-Speed Coring Head

The optional coring head mounts onto the side of the GV5 sonic head, moving into place by side shifting the head. The coring head is capable of 800 rpm with 540 ft-lbs of torque in forward and 720 ft-lbs of torque in reverse for breaking tool joints. Also, the high-speed coring head incorporates a side-feed swivel, and is set up to work with our floating subs. The floating subs have 2 inches of travel simplifying make-up with the tool string.
