7822DT Stringpot Mounting Locations

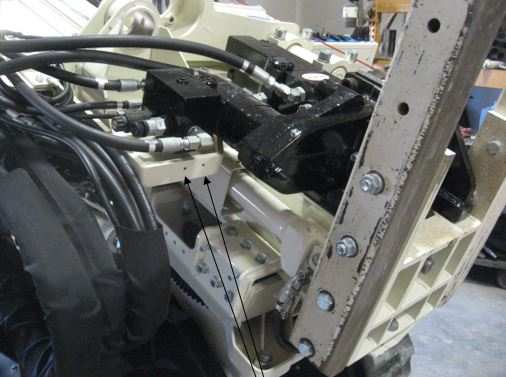

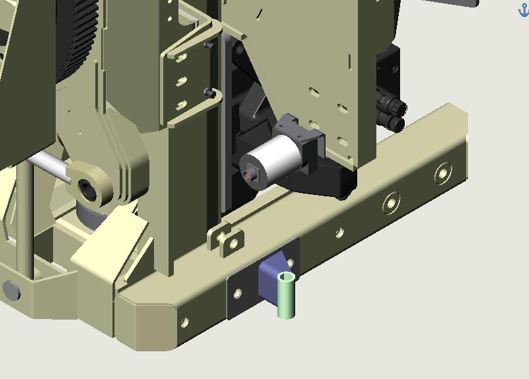

Upper stringpot bracket mounts on using the 2 holes on the bracket off the left side of the hammer. The SP bracket is mounted so the SP is located right behind the hammer mounting plate. It is critical the stringpot is not mounted below the hammer plate as this can lead to damage of the stringpot. The Foot Bracket shown below should also be used as it positions the piston weight directly under the stringpot.
