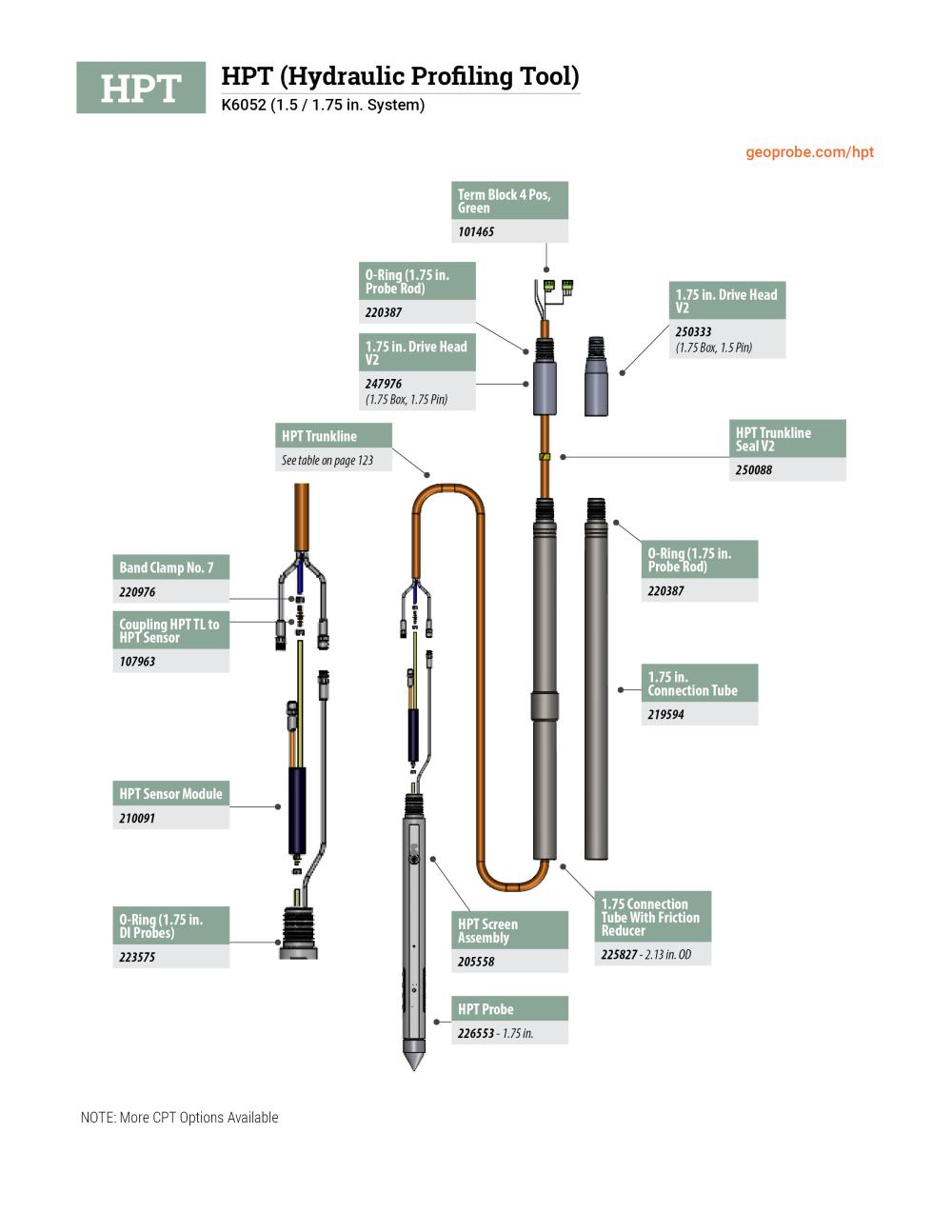

K6052 (1.5 / 1.75 in. System)

Field Instrument

110V

MN: 213940

Field Instrument

220V

MN: 213941

HPT Flow Controller

110V

MN: 214091

HPT Flow Controller

220V

MN: 214093

HPT Probe

1.75 in.

MN: 226553

HPT Probe

2.25 in.

MN: 214097

HPT Trunkline

150 ft.

MN: 214095

HPT Trunkline

200 ft.

MN: 214096

HPT Trunkline Seal, Orange

MN: 207772

Trunkline Seal Spacers

MN: 207596

HPT Service Kit

MN: 205599

HPT Screen Assembly

MN: 205558

HPT Spring Washer

Quantity: 10

MN: 215453

HPT Sensor Module

MN: 210091

Coupling HPT TL to HPT Sensor

MN: 107963

Band Clamp No. 7

Quantity: 10

MN: 220976

MIP-HPT Screen Ratchet Wrench Assembly

MN: 212094

MIP-HPT Screen Ratchet Wrench Head Assembly

MN: 212095

HPT Reference Cylinder

For 1.75 in. and smaller probes

MN: 212689

HPT Reference Cylinder

For 2.25 in. probes

MN: 211762

Wenner Array Probe Test Jig

MN: 214237

EC Test Load, 3 Level Test

MN: 208075

HPT Controller Test Load

MN: 206552

140 Micron Filter Replacement HPT

MN: 110223

HPT Trunkline - EC Pigtail

MN: 220974

HPT Trunkline - Sensor Pigtail

MN: 220975

Term Block 4 Pos, Green

MN: 101465

HPT Line Pressure Sensor

MN: 112735

HPT Flow Sensor

MN: 106479

1.75 RHSL Box x 1.75 RHML Pin

4.08 in. S-S

MN: 220130

O-Ring (1.75 in. Probe Rod)

Quantity: 25

MN: 220387

1.75 RHSL Box x 1.5 Pin

4.50 in. S-S

MN: 220545

O-Ring (1.5 in. Probe Rod)

Quantity: 25

MN: 202695

1.75 Connection Tube With Friction Reducer

2.13 in. OD

MN: 225827

1.75 in. Connection Tube

MN: 219594

O-Ring (1.75 in. DI Probes)

Quantity: 10

MN: 223575

O-Ring (2.25 in. Probe Rod)

Quantity: 25

MN: 213790

2.25 in. Water Seal Drive Head

2.75 in. OD

MN: 209796

2.25 in. Water Seal Drive Head

2.25 in. OD

MN: 212089

2.25 Connection Tube Standard

MN: 219455

O-Ring (2.25 in. DI Probes)

Quantity: 10

MN: 220388
