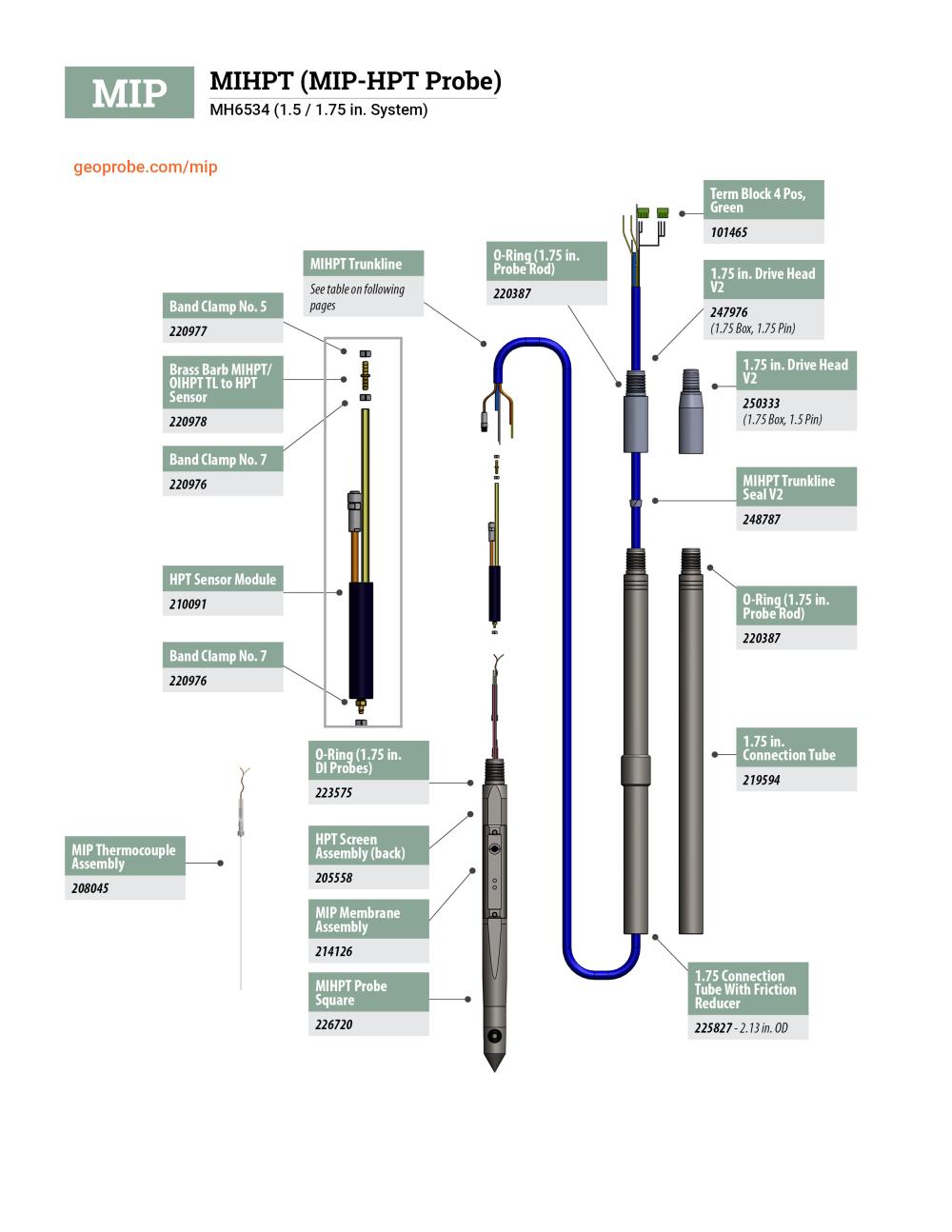

MH6534 (1.5 / 1.75 in. System)

Direct Image^® Links

= Tool String Diagram (TSD)

Parts

To order parts or to get a quote, click the "+ Part" button. Once you are ready to submit your quote or order, go to your cart.
You will have the option to order immediately (pending payment) or get a quote.

FIELD INSTRUMENT 6000 ASSEMBLY

MN: 213940

MP6505 CONTROLLER, 120VAC, FI BASED

MN: 214137

HPT FLOW MODULE, FI BASED 120VAC

MN: 214091

MP9000 MIP PULSE FLOW CONTROLLER

MN: 216030

HTL CONTROLLER 120VAC

MN: 214147

MIPHPT PROBE 120V, SQUARE, 1.75

MN: 226720

MIHPT PROBE 2.25 OD,120V

MN: 214117

MIP TRUNKLINE 100 ft.

MN: 204077

MIP TRUNKLINE 150 ft.

MN: 202570

MIP TRUNKLINE 200 ft.

MN: 204655

MIHPT TRUNKLINE, 100FT 3GL

MN: 236309

MIHPT TRUNKLINE, 150FT 3GL

MN: 236310

MIHPT TRUNKLINE, 200FT 3GL

MN: 236311

MIP HEATED TRUNKLINE 100 ft.

MN: 214150

MIP HEATED TRUNKLINE 150 ft.

MN: 214151

MIP HEATED TRANSFER LINE, 8FT

MN: 214149

MIP TRUNKLINE SEAL, YELLOW

MN: 207773

HEATED TRUNKLINE SEAL, RED

MN: 211768

TRUNKLINE SEAL SPACERS (1 PAIR)

MN: 207596

MIP SERVICE KIT 6500 SERIES

MN: 214142

HPT SERVICE KIT

MN: 205599

THERMOCOUPLE MIP REPLACEABLE ASM

MN: 208045

MIP REPLACEMENT MEMBRANE

MN: 214126

WASHER COPPER FACE SEAL 0.79 OD

MN: 102520

MN: 205558

HPT SPRING WASHER (PKG 10)

MN: 215453

MIP MEMBRANE RATCHET WRENCH ASM.

MN: 212094

MIP MEMBRANE RATCH-WRENCH HEAD ASM.

MN: 212095

MN: 210091

BAND CLAMP No. 7, (PK 10)

MN: 220976

BAND CLAMP No 5.7, (PK 10)

MN: 220977

BRASS BARB MiHPT/OiHPT TL TO HPT SENSOR (Pkg 5)

MN: 220978

O-Ring 1.75 in. Rod Probes MiHPT, OiHPT, HPT

MN: 110205

O-RING FOR 1.75 in. THD DI PROBES (PKG 10)

MN: 223575

FERRULE 1/16 in. x .8 mm GRAPHITE/VESPEL

MN: 108116

FERRULE SET BRASS 1/16 in. (10/PKG)

MN: 210555

NUT HEX BRS 1/16 in. COMP TUBE (10/PKG)

MN: 210557

NUT HEX BRS 1/8 COMP TUBE SWAGELOK

MN: 102071

120V MIP TRUNKLINE CONNECTOR

MN: 112805

CONN THERMOCOUPLE in.K in. TYPE MALE

MN: 101498

TERM BLOCK 4 POS GREEN

MN: 101465

MP6520 PROBE BUTT CONN GREEN (10PK)

MN: 208657

MP6520 PROBE BUTT CONN RED (10PK)

MN: 208658

DI-POLE TESTER (DI PRODUCT PROBES)

MN: 205724

HPT REF CYL, 1.75 IN. PROBE

MN: 212689

HPT REF CYL, 2.25 IN. PROBE

MN: 211762

MIP BREAKOUT CONNECTION PANEL

MN: 211100

FLOW METER DIGITAL MIP

MN: 600227

XSD PROBE ASSEMBLY

MN: 112878

XSD REACTOR CORE, OI BRAND

MN: 213495

PID LAMP MODEL# 108-10.0/10.6

MN: 600044

DRIVE HEAD 1.75 RHML PIN X 1.75 RHSL BOX

MN: 220130

MIP SOIL GAS RESPONSE TEST JIG

MN: 231500

Drive Head 1.5 Pin to 1.75 RHSL Box

MN: 220545

1.75 in. Connection Tube

MN: 219594

1.75 in. Connection Tube with Friction Reducer (2.13 in. O.D.)

MN: 225827

2.25 in. Water Seal Drive Head (2.75 in. OD)

MN: 209796

2.25 in. Water Seal Drive Head (2.25 in. OD)

MN: 212089

2.25 Connection Tube Standard

MN: 219455
