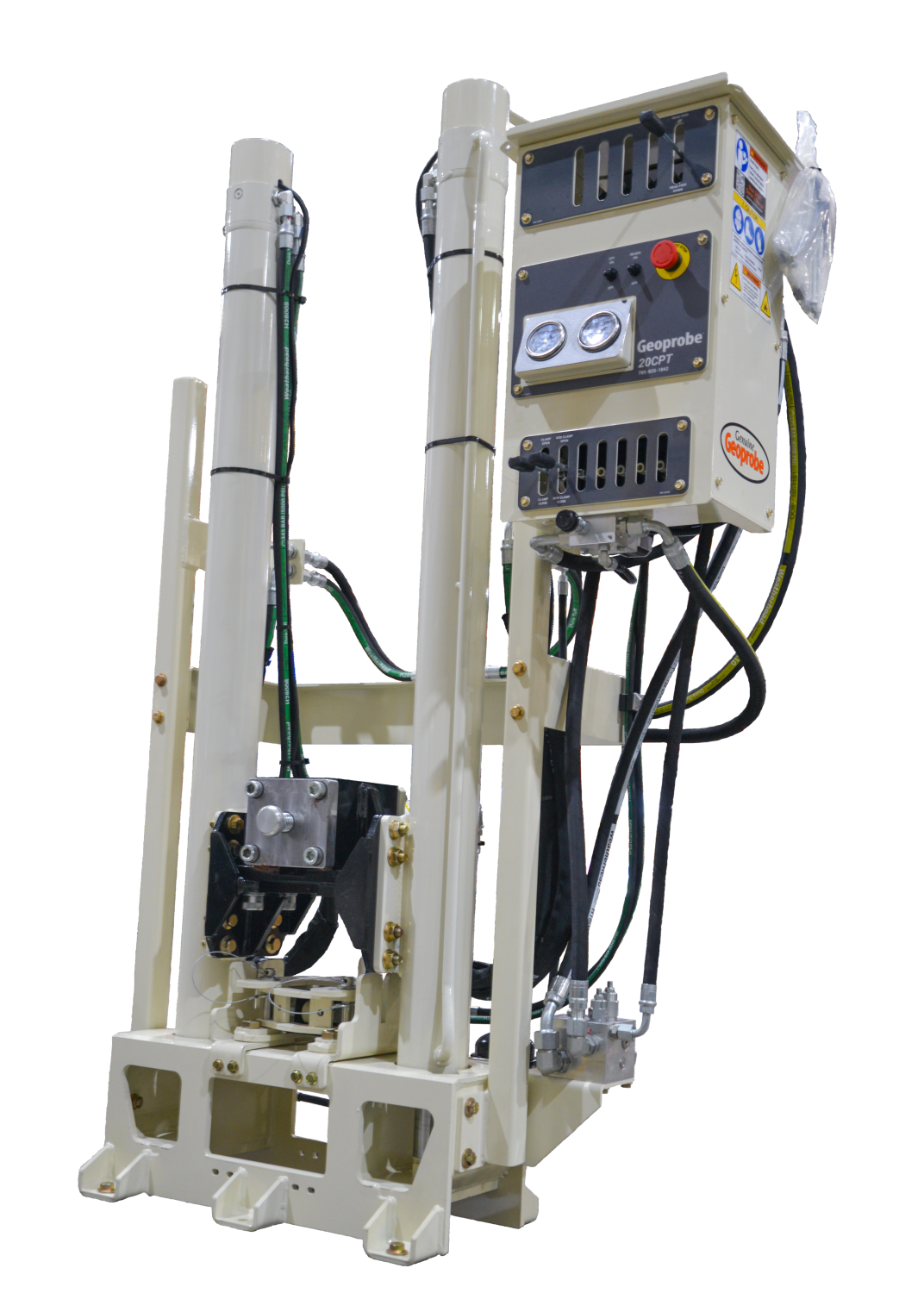

Versatile 20-Ton Rated CPT Drill

The 20CPT Standalone Press can be mounted on any carrier, letting you tailor transport for your CPT drill..

The 20CPT Standalone Press can be mounted on any carrier, letting you tailor transport for your CPT drill..

Geoprobe® adds a NEW 20-ton CPT drill option: the 20CPT Standalone Press. It can be mounted on any carrier, letting you tailor transport for your fieldwork. The 20CPT Standalone Press uses the carrier’s weight — no anchoring needed. This reduces soil disturbance and speeds up each hole.

• Hydraulic Requirements: open center system with 24 gpm maximum flow, 2500 psi maximum and 300 psi maximum back pressure

• Compact Size: weighing 1090 lbs, dimensions are 72-inches high, 48-inches wide, and 36-inches deep

• Mounting Base: simplifies deck mounting

CPT Drill Features

Control Panel

• top mounting location for CPT computer

• extra valve banks to use for other platform functions

Twin Cylinders

• 40,000 lbs push and 60,000 lbs pull

• 54-inch stroke

Hydraulic Clamps

• Top: hydraulic back jaw, manual front jaw adjusts for larger tools

• Bottom: prevents rods from sliding back down the hole

Contact Us

1835 Wall Street
Salina, Kansas 67401
Phone: (785) 825-1842

❯ Contact Us

Geoprobe® 20CPT Press Overview

Expand CPT access with 20CPT press

20CPT Press

Expand CPT access with lightweight, compact 20CPT Press and tailor your CPT rig by mounting to a skid steer or on a 6712DT small drill rig.
